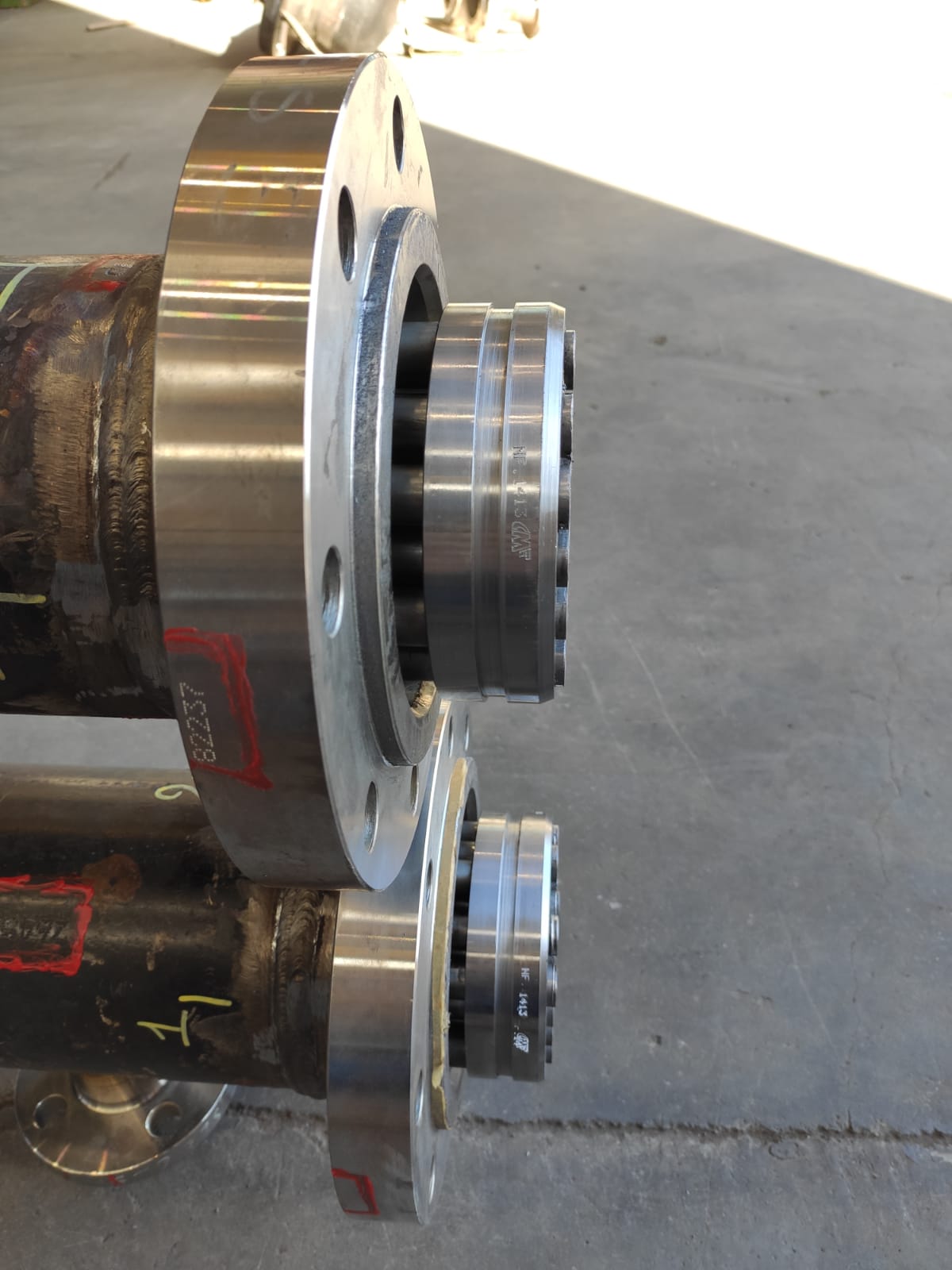

Aftercooler

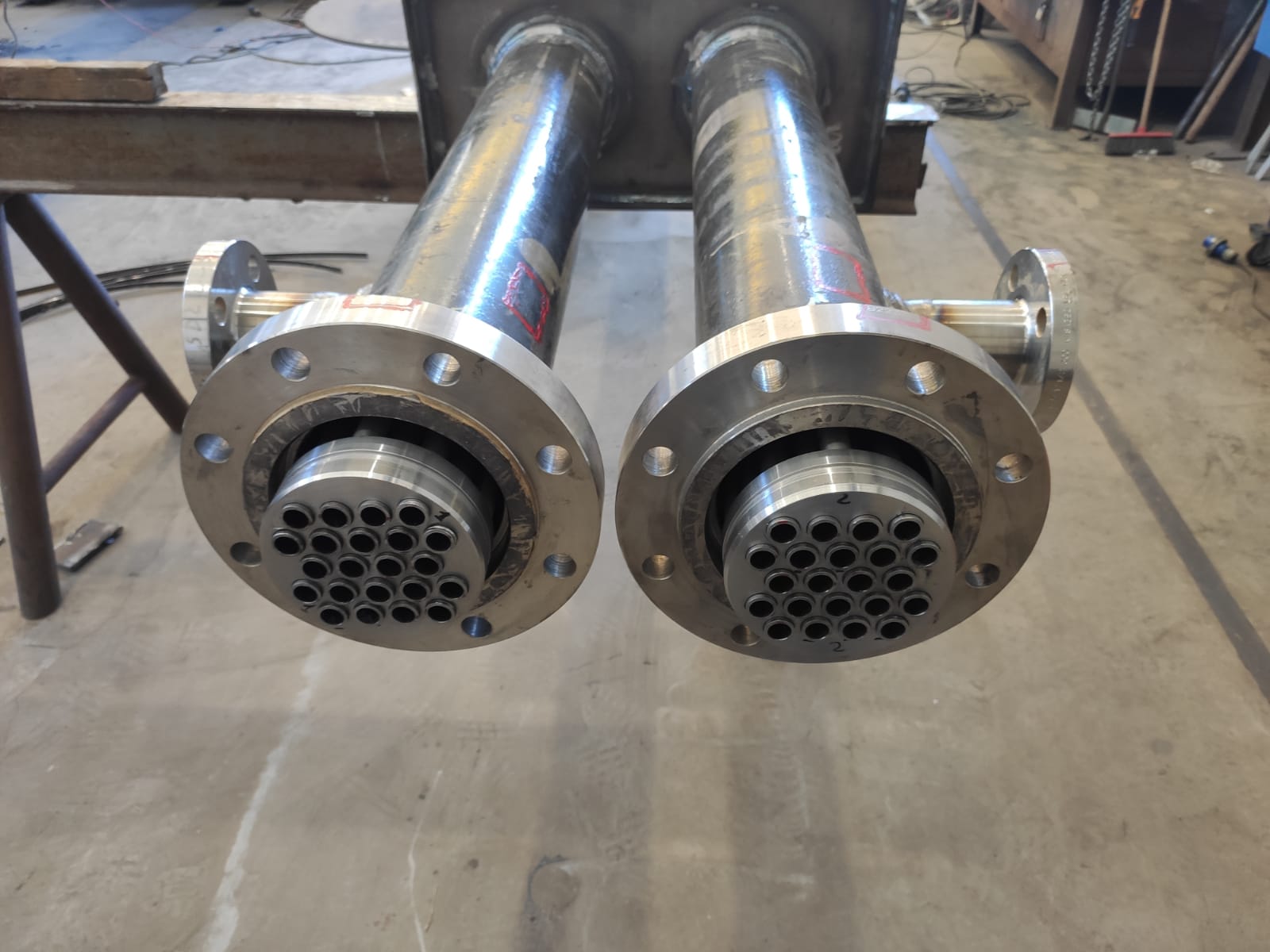

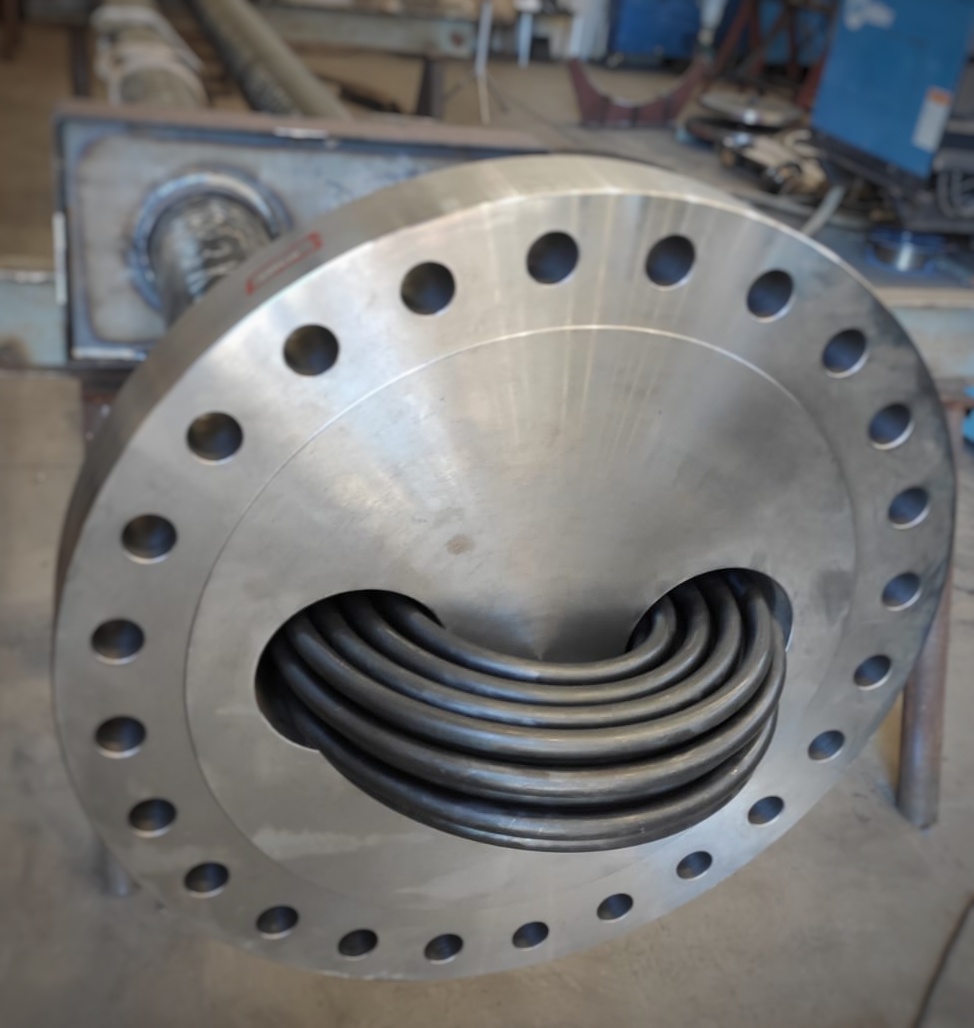

Multitube Hair Pin Type Heat Exchanger
No. of U-tubes: 22
U Tubes Straight Part Length: 6100 mm
Tubes Material: ASME SA 210 Gr. A-1
Tubesheet Material: ASME SA350 Gr. LF2
Shell: ASME SA 333 Gr. 6 / SA 420 Gr. WPL6
Tube-to-Tubesheet Joint: Strength Rolling Expanded
Weight: 1400 kg
