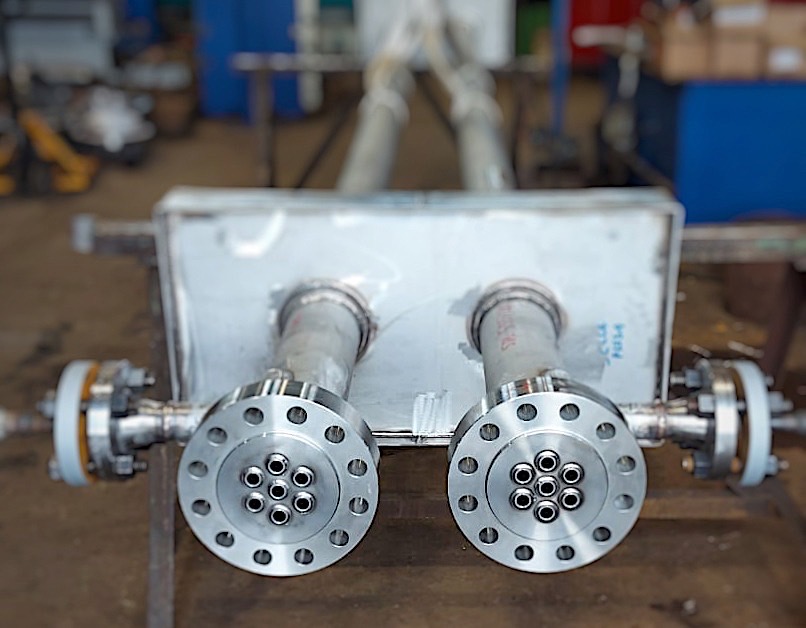

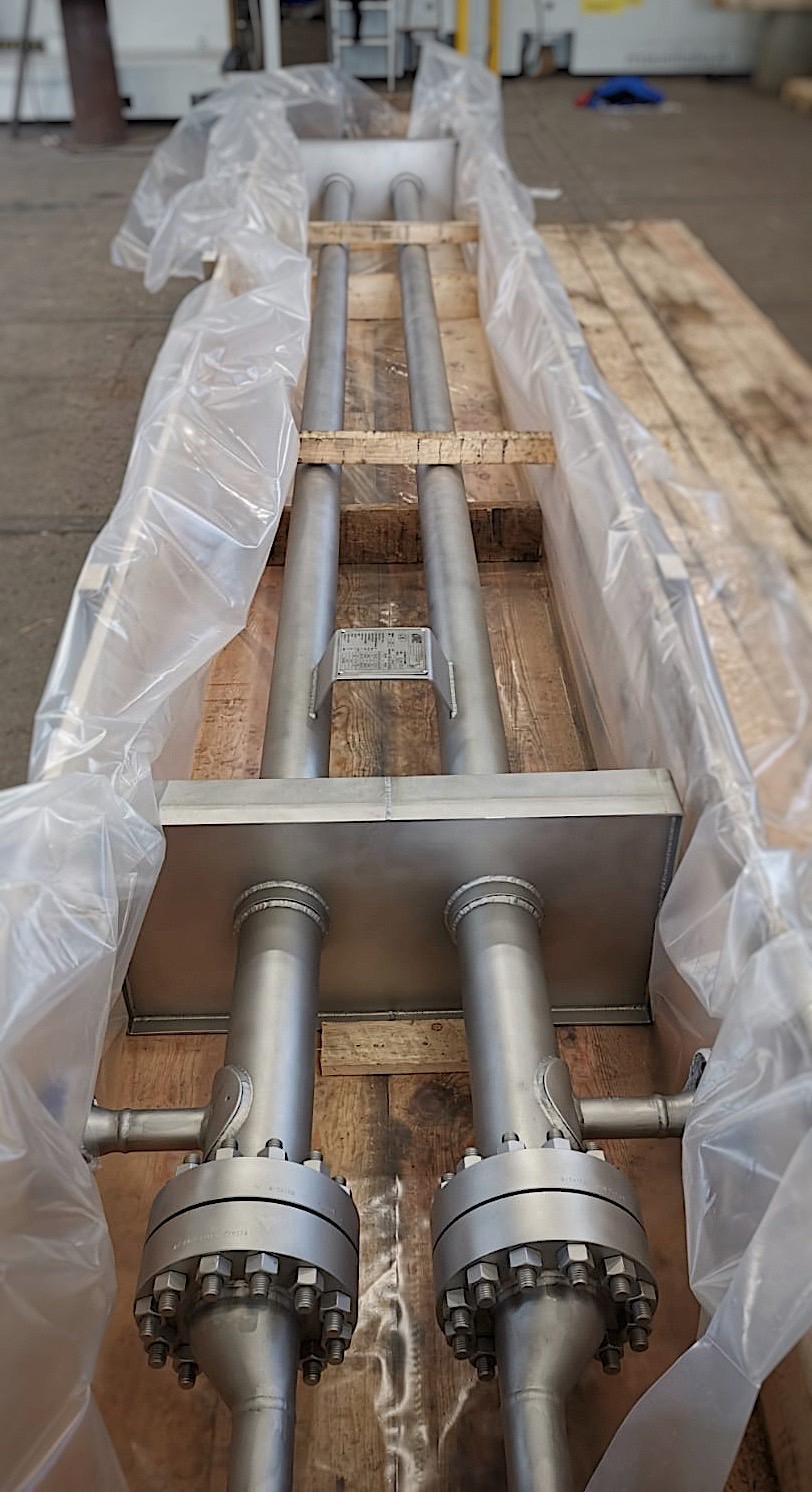

Seal flush cooler

Multitube Hair Pin Type Heat Exchanger
No. of U-tubes: 7 with Cut&Twisted Fins
U Tubes Straight Part Length: 5750 mm
Tubes Material: ASME SA 789 S32205
Tubesheet Material: ASME SA 182 f60 S32205
Shell: ASME SA 790 S32205 / SA 815 S32205
Tube-to-Tubesheet Joint: Strength Welded and Light Expansion
Weight: 700 kg
